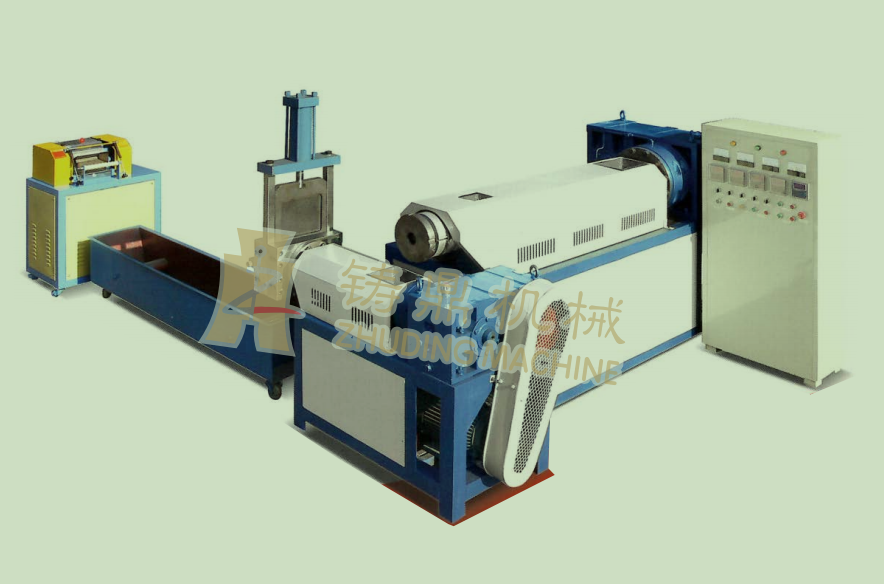

塑料再生造粒机
RECYCLING GRANULATORSJ
塑料再生造粒机
特 点 Characteristics:
本机可将回收清洗干净的旧编织袋、薄膜或其他已经破碎的旧塑料加工成粒子作为塑料原料。本机螺杆、机简采用38CrMOAIA合金钢氮化处理机筒模头加热自动控温。
It’s used for processing recycle clean woven bag, plastic film or other broken old plastic to make them into granules that will be reused as raw material.The screw and cylinder of this machine are made of 38CrMoAIAalloy steel, done nitrogen treatment. The heating for the cylinder and die adopt auto temperature control.
|
主要技术参数Main Technical Parameters |
|||||||
|
项 目 |
螺杆直径 |
螺杆长径比 |
螺杆转速 |
主机功率 |
产量 |
重量 |
尺寸 |
|
SJ-90 |
中 8 5 m m |
20:1-22:1(L/D) |
10-110rpm |
22KW |
60kg/h |
2t |
5800×1250×1100 |
|
SJ-100 |
φ95mm |
20:1-22:1(L/D) |
10-110rpm |
30KW |
90kg/h |
2.1t |
5900×1300×1200 |
|
SJ-110 |
φ105mm |
20:1-22:1(L/D) |
10-110rpm |
37KW |
110kg/h |
2.2t |
6000×1350×1300 |
|
SJ-120 |
φ110mm |
20:1-22:1(L/D) |
10-110rpm |
45KW |
130kg/h |
2.5t |
6200×1400×1350 |
