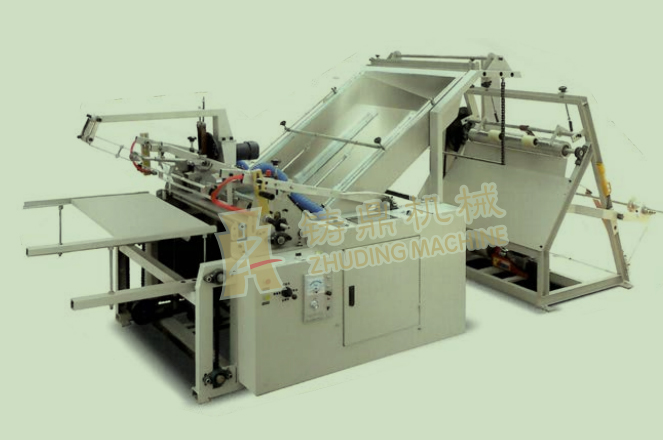

AUTOMATIC WOVEN SACK HEAT-CUTTING/COLD-CUTTING MACHINE

塑料编织自动冷\热切袋机

产品性能及用途:

适合各样塑料整卷编织袋(包括二复合、彩印袋);

在规定范围内实现定长、定标切割;

自动计数、光电追标、遥控控制;

切割长度可用10-3500mm且切割长度十分准确;

最大切袋宽度800mm

切袋速度可调20-70pcs/min

放卷机自升降

刀口不粘合，不掉丝、

Performance and Characteristics:

It is suitable various roll woven bag (included double lamination, color printing bag);

Within a prescribed scope it can cut the fixed length and calibration;

Auto.counting、phootcell tracing、remote controlled;

Cutting length is accurate and can cut 10-3500mm;

Max. cutting width is 800mm;

Cutting speed is adjustable,20-70pcs/min;

Auto. lifting unwinding machine;

The blade can't be agglutinated.

主要技术参数Main Technical parameters
项目Item 型号Type	最大切割宽度 Max.cutting width	切割长度 Cutting length	长度误差 length error	制袋速度 speed	主电机功率 main motor power	机器重量 weight	外形尺寸(主) overall dimension (main part)
ZD-ZRQ800	400-800mm	600-2500mm	±5mm	40-70pcs/min	2.5kw	600kg	4500X1500X1500
