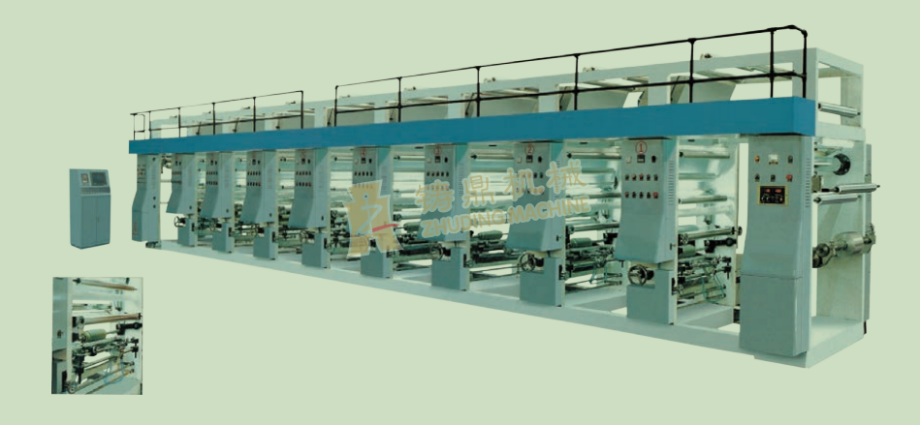

COMPUTER COMBINATION GRAVURE PRINTING MACHINE

ASY-ZD型系列电脑组合式凹版印刷机

特点Characteristic:

本机器适用于玻璃纸、BOPP、PET、PVC、PE、铝箔和卷筒纸张等具有优良印刷性能的卷筒状材料的多色连续印刷。

1、整机为排列组合式，可据用户要求增减印刷色组及增设反面印刷机构。

2、主机牵引、收卷均采用变频同步调速。

3、电脑套色系统每单元由独立的微机处理器控制，可速准确的修正套色偏差。

4、通轴式装版。

5、具有套色显示，系统综合偏差校正及超差报警功能。

6、双电眼检测，提高整机检测与调整速度。

7、放卷、出料牵引采用全自动张力控制器和磁粉制动器、离合器控制。

8、收卷采用变频牵引压辊采用气动元件控制9、印刷压辊、出料牵引压辊采用气动元件控制。

10、气动背压移动式刮刀。

11、油墨循环系统。

12、气胀式装卸轴。

13、收、放卷均为翻滚双工位机构，实现不停机接换料。

This machine is used for cellophane, BOPP, PET,PVC, PE, aluminum foil and web, with good printing performance for multi-color continuous printing.

1.The whole machine is fixed by permutation combination, according to the customers' requirements, the printing color unit can be increased or decreased and the cover printing mechanism can be added as well.

2.The traction and rewinding adopt frequency conversion and synchronous speed regulation.

3.Each unit of computer flashed system is controlled by separate micro-processor.It can adjust the flashed deviation quickly and precisely.

4.General shaft style installment.

5.Display of flashed deviation, comprehensive deviation correcting system and super-difference alarming function.

6.Double photoelectrical checking improves the whole checking and speed adjustment.

7.Rewinding and discharging traction are adopted with full automatic tension controller and magnetic power brake and clutch to control.

8.The winding adopts frequency conversion traction, while the pressing roller adopts pneumatic components to control.

9.Printing roller and discharging traction pressing roller are both adopted with pneumatic unit to control.

10.Pneumatic back pressure shifting blade.

11.Ink circulating system.

12.Gas expansion type loading and unloading shaft.

13.Unwinding and rewinding are both double working mechanisms to meet non-stop roll-change.

主要技术参数Main Technical Parameters
项 目 Item 型号 Type	印刷长度 Length of	印刷宽度 Width of printing(mm)	印刷色数 Printing color	印刷速度 Speed of printing (m/min)	套印精度 Precision of overprint	装机总功率 Gross power (kw)	机器重量 Weight of machine ( kg)	外形尺寸 Overall dimension (LxWxH)mm
ASY-ZD8600	240-1100mm	600	1-8	≤110	≤0.12mm	46	9000	10800×2050×2720
ASY-ZD8800	240-1100mm	800	1-8	≤110	≤0.12mm	58	10000	10800x2050x2720
ASY-ZD81000	240-1100mm	1000	1-8	≤110	≤0.12mm	72	12000	10800×2050x2720
