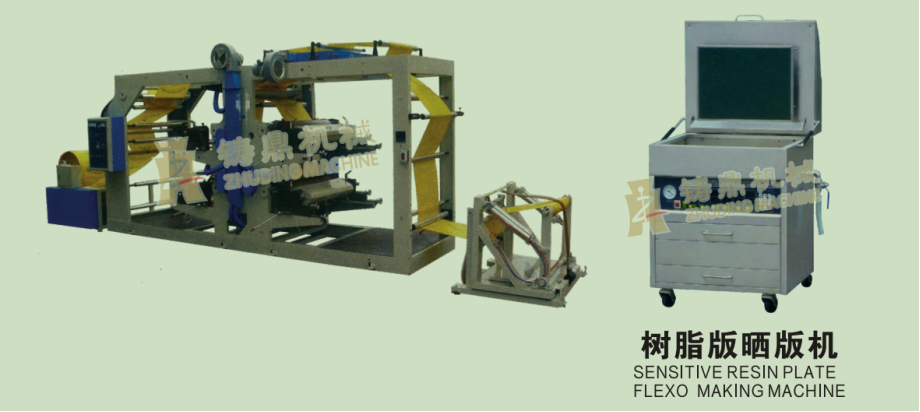

FLEXOGRAPHIC PRINTING MACHINE FOR PP WOVEN SACK

ZD-RY型卷筒编织袋柔版印刷机

本机是用感光树脂软版材作为印版的印刷机,俗称“苯胺印刷机”。适合印刷卷筒编织布，卷筒星空体育，聚乙烯、聚丙烯塑料袋、玻璃纸、卷筒纸等包装材料，是编织袋、星空体育、食品包装纸，超市手提袋、马夹袋、服装袋等包装的理想印刷设备。

Adopting soft sensitive resin as its printing plate, this kind of printing machine can be used to print PP/PE woven cloth tube,PP/PE film tube, cellophane and web.This is an ideal equipment for printing PP/PE woven cloth, shopping bags,vest bags, as well as garment bags, etc.

性能及特点:

1、操作简便、起动柔和，套色准确。

2、计米器可根据要求设定印刷数量，到数自动停机，断料自动停机。

3、手动或自动起落印刷版滚筒，升版后油墨自动搅拌，以仿油墨干燥冻结。

4、网纹滚筒传墨，墨色均匀。

5、可靠的干燥系统，配合高速运转，停机自动断路。

6、360度连续可调的纵向地花版装置。

7、变频电机调速，适应不同印速度。

8、版辊座上及收料架上均装有点动及停止按钮，便于装片时操纵机器。

Performance and Characteristics:

1. Easy operation, flexible start, accurate register.

2. The meter can preset printing quantity, so that the machine stops automatically when reaching preset number or the material running out.

3. Lift and lower the printing rollers manually or automatically.the printing ink can automatically stir after being lifted, so as to avoid being dried and frozen.

4.The printing ink is transmitted by cobweb cylinder, which assures even ink color.

5.Reliable drying system, high speed running, and auto turn-off once the machine stops.

6.360 degrees continuous and adjustable longitudinal register plate.

7.Inverter motor for speed regulation adapts to different printing speed.

8.Buttons for “click" and “stop" on roller base and rewinding stand,which are convenient to operate the machine while installing the plate.

主要技术参数Main Technical Parameters
项目      Item Type	袋子长度   Length of material(mm)	袋子宽度 Width of material(mm)	印刷宽度 Printing width(mm)	印刷长度 Printing length (mm)	印刷色数 Printing colors	速度 Printing   speed (m/min)	总功率 Gross power (kw)	重量 Weight ( kg)	尺寸 Installing Dimensions (mm)
ZD-RY2800B	1200	800	700	230-1200	2	5-50	10	1800	4000×1800×2200
ZD-RY4800B	1200	800	700	230-1200	4	5-50	12	3000	6000×1800×2400
ZD-RY6800B	1200	800	700	230-1200	6	5-50	15	4000	6000x1800x2400
