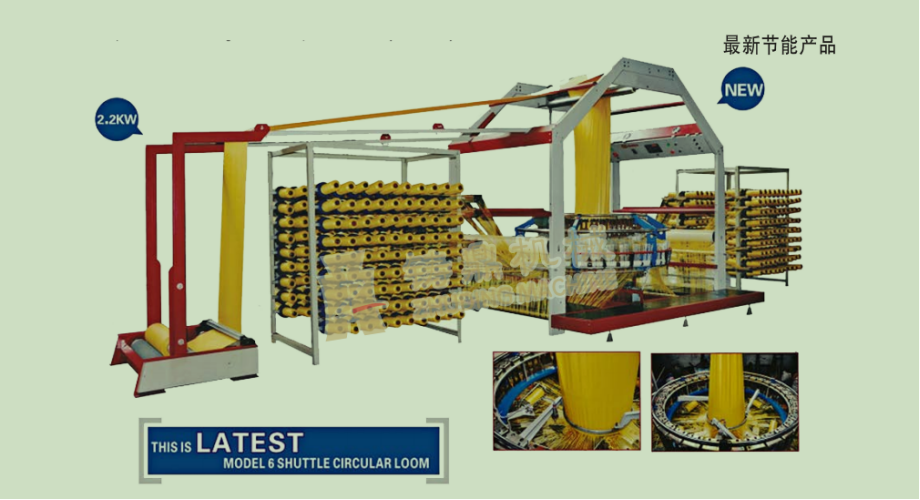

SIX-SHUTTLE PLANE CAM CIRCULAR LOOM

平面凸轮小六梭圆织机

功能及特点:

☆采用最先进的平面凸轮与连杆滚轮转动，运转轻松平稳。

☆取消了滑块与滑杆，减少了易损件，全部机构采用滚动传动，不用润滑油润滑。

☆具有经断、纬断、纬完自动停机检测装置，停机灵敏可靠。

☆电器控制采用PLC集中控制，变频调速，调速方便稳定。

☆高效节能，主机最高转速可达180r/min,使用2.2/3kw电机，比原小六梭使用4kw电机一年可节电一万度。

☆可根据用户要求，安装电子智能提布机构，具有任意设定纬密度和纬密度补偿功能。

Performance and Characteristics:

☆Plane Cam and connecting rod rolling wheel transmission, which is the most advanced technology, is adopted.

making it easy and stable to run.

☆Rolling transmission is adopted in entire structrue instead of slide block and slide rod, which doesn't need lubricant and decrease the wearing part.

☆It can be configured with automatically stop & detecting unit, when meeting the situation of warp/weft breaking,and weft ending.The stoppage unit is sensitive and reliable.*PLC centralized control is adopted for electric controlling, frequency speed regulation is adopted as well, which is convenient and stable.

☆It is high-efficient and energy economical.The highest rotation speed of the main motor can reach 180r/min and the power is 3kw,which can save 10 thousand degree electricity one year, compared with the traditional small-sized six shuttle circular loom whose power is 4kw.

☆As required, electronic intelligent fabric-lifting unit can be configured as well, which is featured with the compensation setting to the warp/weft density casually.
