单锭磁力收卷机
SINGLE-SPINDLE WINDING MACHINE

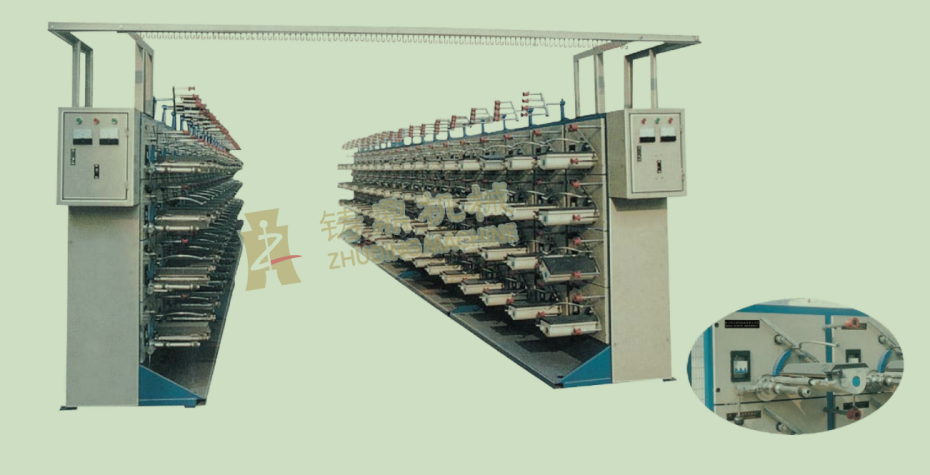

ZD-SDC系列单锭磁力收卷机
功能及特点:
本机与塑料扁丝拉机配套使用，将拉丝机拉制的收卷成丝锭，使圆织机编织。
本机采用磁力传动，在收卷过程中可保持恒定的张力，收卷线速度高，丝锭收卷平整，两边无包边现象，使编织布平整度提高，可与高速拉丝机配套使用，提高产量，降低成本。
Performance and Characteristics
The machine matches the tape drawing machine to wind the tape into tape spindle for the weaving of circular loom.
It adopts magnetic-driving which makes the winding speed twice as quick as that of combination winding machine and keeps the winding tension steady and winding spindle flat to improve the quality of weaving flatness.by machine high speed tape drawing machine, it can increase the output and reduce the cost greatly.
|
主要技术参数Main Technical Parameters |
|||||||
|
项 目 |
锭子层数 |
锭子数 |
丝锭宽度(mm) |
卷丝线速度 |
电功总功率 |
安装尺寸 |
重量(约)(mm) |
|
ZD-SDC-168A |
4 |
168 |
200(240) |
50-400 |
30 |
10500x3200x2000 |
6300 |
|
ZD-SDC-192A |
4 |
192 |
200(240) |
50-400 |
35 |
12000x3200x2000 |
6800 |
|
ZD-SDC-240A |
4 |
240 |
200(240) |
50-400 |
43 |
15000x3200×2000 |
8500 |
|
ZD-SDC-256A |
4 |
256 |
200(240) |
50-400 |
46 |
16000x3200x2000 |
9000 |
|
ZD-SDC-288A |
4 |
288 |
200(240) |
50-400 |
52 |
18000x3200x2000 |
10000 |
