拉丝机
PLASTIC FLAT YARN EXTRUDER LINE

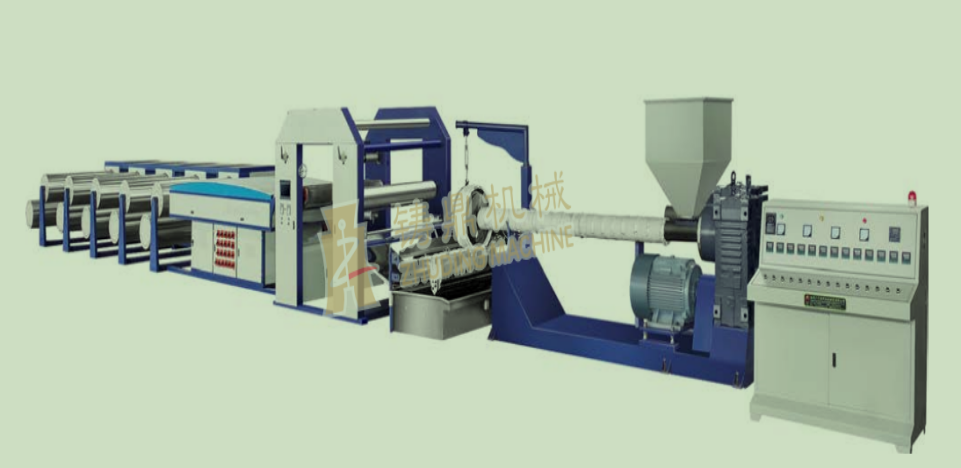

ZD-FS系列塑料扁丝拉丝机
功能及特点:
本机利用聚丙烯、高密度聚乙烯为原料，经加热、挤出、剖丝、拉伸形成扁丝经收卷后供圆织机编织。我厂拉丝机进行多次改进，可利用100%再生料、粉料或颗粒料拉制扁丝。挤出机的螺杆、机筒采用38CrMOAIA合金刚经氮化处理，硬度达到Hv950以上。挤出机采用20CrMnTi合金钢制造的硬齿面料齿轮减速器，链轮采用45#中碳钢并经高频火处理，牵引辊筒电镀硬铬，牵引机构增加自控张力收卷辊筒，挤出机料筒、三通和膜头采用铸铝加热圈加热，经久耐用。
Performance and Characteristics:
The machine using material of polypropylene & high density polyethylene, through heating extruding
and drawing makes tape that is then winded for the weaving of thecircular loom.Through our sustained improving ,the machine can use 100% regenerated PP & PE ,powder oigrain PP& HDPE to produce tapes .The screw and cylinder of extruder are of 38 CrMoAlA alloy steel.the hardness is over HV 950 after nitrogenation treatment. Helical gear reducer made of 20 CrMnTTially steel is applied to the extruder, the gears & chain wheels are made of 45# medium carbon steeland done the treatment of high frequency quench.The driving rollers are plated with hard Cr, tensionself-controlling of winding-rollers are applied to the driving unit.. The cylinder of extruder, triton anddie adopt aluminum cast heater which is endurable.
|
主要技术参数Main Technical Parameters |
|||||||||||||
|
项目Item
型号Type
|
螺杆直径
Diameter of
screw
(mm)
|
螺杆转速 |
模头长度
Width ofDie(mm)
|
减速箱型号
Model of
Reducer
|
挤出机 |
挤出机 |
牵引功率
Power of
driving
motor(kw)
|
烘板
加热功率
Heating
power of
the oven(k
|
拉伸比 |
生产能力 |
线速度 |
安装尺寸
Installation
Dimension(L×W×H)
(mm)
|
重量 |
|
ZD-FS110/B800 |
110 |
25-75 |
800 |
250 |
30 |
36 |
7.5 |
15 |
4-12 |
50-100 |
50-160 |
11300×1500×1300 |
6500 |
|
ZD-FS120/B1200 |
120 |
23-70 |
1200 |
250 |
30 |
47 |
7.5 |
24 |
4-12 |
70-140 |
50-160 |
16500×2050×1300 |
10000 |
|
ZD-FS140/B1600 |
140 |
22-65 |
1600 |
280 |
37 |
77 |
7.5 |
30 |
4-12 |
90-180 |
50-160 |
20000×2600×2200 |
16000 |
|
ZD-FS140/B1800 |
140 |
22-65 |
1800 |
280 |
37 |
80 |
11 |
30 |
4-12 |
100-200 |
50-160 |
20000×2950×2200 |
17000 |
|
ZD-FS145/B2000 |
145 |
20-60 |
2000 |
300 |
45 |
86 |
11 |
30 |
4-12 |
110-240 |
50-160 |
21000×3400×2200 |
20000 |
|
ZD-FS150/B2200 |
150 |
20-60 |
2200 |
300 |
55 |
86 |
11 |
30 |
4-12 |
120-260 |
50-160 |
22000×3700×2200 |
22000 |
|
ZD-FS160/B2600 |
160 |
20-60 |
2600 |
315 |
75 |
96 |
15 |
32 |
4-12 |
140-300 |
50-160 |
23000×4400×2500 |
26000 |
|
ZD-FS160/B2800 |
160 |
20-60 |
2800 |
315 |
75 |
106 |
15 |
34 |
4-12 |
160-320 |
50-160 |
23000×4600×2500 |
28000 |
|
ZD-FS160/B3000 |
160 |
20-60 |
3000 |
315 |
90 |
106 |
15 |
34 |
4-12 |
160-340 |
50-160 |
24000×4800×2500 |
30000 |
|
ZD-FS170/B3200 |
170 |
20-60 |
3200 |
375 |
90 |
112 |
18 |
36 |
4-12 |
180-350 |
50-160 |
25000×5000×2500 |
32000 |
|
ZD-FS170/B3500 |
170 |
20-60 |
3500 |
375 |
110 |
118 |
18 |
36 |
4-12 |
200-360 |
50-160 |
25000×5200×2500 |
35000 |
|
ZD-FS180/B3800 |
180 |
20-60 |
3800 |
420 |
110 |
118 |
18 |
45 |
4-12 |
200-380 |
50-160 |
25000×5500×2500 |
38000 |
|
ZD-FS180/B4000 |
180 |
20-60 |
4000 |
420 |
132 |
145 |
22 |
50 |
4-12 |
350-450 |
50-160 |
25000×6000×2500 |
40000 |
|
ZD-FS200/B5000 |
200 |
20-60 |
5000 |
450 |
160 |
155 |
30 |
60 |
4-12 |
500-600 |
50-160 |
27000×7000×2500 |
50000 |
|
ZD-FS210/B5800 |
210 |
20-60 |
5800 |
450 |
185 |
165 |
30 |
70 |
4-12 |
500-700 |
50-160 |
30000×8500×2500 |
