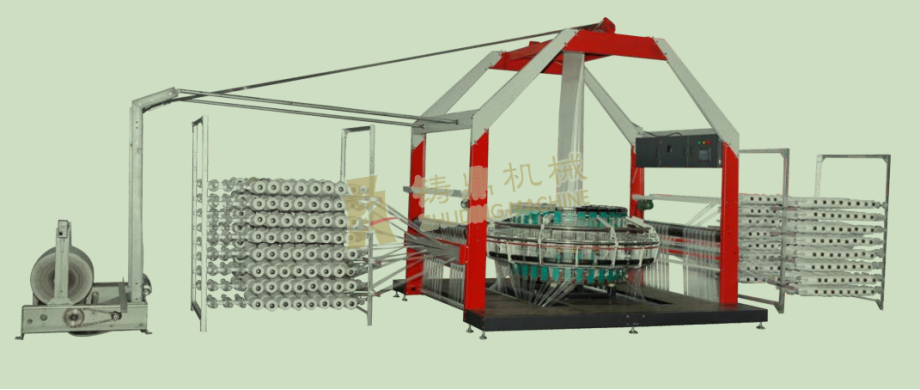

FOUR-SHUTTLE PLANE CAM CIRCULAR LOOM

平面凸轮四梭圆织机

功能及特点:

☆采用最先进的平面凸轮与连杆滚轮传动，运转轻松平稳。

☆取消了滑块与滑杆，减少了易损件，全部机构采用滚动传动，不用润滑油润滑。

☆可配经断、纬断、纬完自动停机检测装置，停机灵敏可靠。

☆环保型产品，噪音≤82dB(A).

☆可利用100%再生塑料制成的低强度扁丝编织。☆高效节能，主机最高转速可达180r/min，使用1.5/2.2kw电机，比原四梭使用4kw电机一年可节电一万度。☆最新研制产品,型号ZD-PC-4/750

Performance and Characteristics:

☆Plane cam and connecting rod rolling wheel transmission, which is the most advanced technology are adopted，making it easy and stable to run.

☆Rolling transmission is adopted in entire structrue instead of slide block and slide rod, which doesn’t need lubricant and decreases the wearing part.

☆It's an environmental product whose noise is not more than 82dB(A).

☆Low strength plastic yarn which is made from 100% regenerated plastic can be adopted to weave.

☆It is high-efficient and energy economical. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw, which can save 10 thousand degree of electricity one year.

☆It is the latest type circular loom

主要技术参数Main Technical Parameters
项目Item 型号Type	梭子数 Number of shuttle	编织折径 Weaving folding width(mm)	最多径丝数 Max.number warp(pcs)	主机转速 Revolutions of main motor (r/min)	产量 Production Capacity(m/h)	噪音 Noise dB(A)	电机总功率 Power of main motor(kw)	安装尺寸 Installing dimensions (LxWxH)(mm)	重量 Weight(kg)
ZD-PC-750/4	4	300-750	768	140-180	65-100	<65	2.2	8500×2200×2730	1600
ZD-PC-1200/4	4	550-1100	896	120-160	72-96	<65	3	8900×2350×2960	1800
ZD-PC-1500/4	4	700-1400	1120	90-125	54-75	<65	3.5	9800×2500×2960	2000
