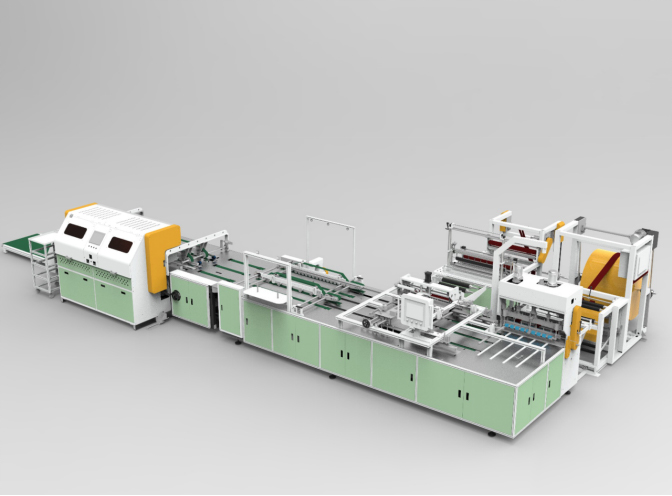

FULL-AUTOMATIC CUTTING AND SEWING MACHINE FOR LINER BAGS

全自动套袋星空xingkong(中国)

性能及特点:

1.本机采用全自动装置 PLC控制，触摸屏操作，同服驱动。具备冷刀(飞刀)、热刀，可自由转换。冷刀、热刀均采用进口材料制作。热刀耐用实用、加热不变形,无烟环保(热切带自动 搓口,袋口不粘连)2.配前后搓口。可自由选择自动切缝与自动套袋切缝。

3.本机操作简易，单人操作。适用于:普通袋套内袋、复膜袋套内袋纸塑袋套内袋、饲料袋套内袋、化肥袋 套内袋等。4.可选配套袋切缝封底机。

Performance and Characteristics:

1.The machine is controlled by PLC, touching Screen Operation,servo drive.The machine comprises cold knife(flying knife)and hot knife for free conversion.Cold knifeand hot knife are made of imported materials. Hot knife is durable and practical, heating without deformation, smoke-free and environmental protection (The mouth of bag iseasy to open and won 't be conglutinant after hot cutting).

2.The machine has front and back rub mouth,It can be chosen automatic cutting and sewing or cutting and sewing for lined bags.

3.Easy operation, single operation.The machine is suitable for ordinary bag with inner bag、laminating bag with inner bag、paper-plastic compound bag with inner bag.feedbag with inner bag、 fertilizer bag with inner bag etc.

4.Optional matching inner bag insertion cutting sewing bottom sealing machine.

主要技术参数 Main Technical Parameters
项 目 ltem 型号 Type	筒布直径 Cutting width	切袋宽度 Cutting width	切袋长度 Cutting length	切袋精度 Cutting precision	切袋速度 Cutting and sewing speed	套袋速度 Bag inserting speed	总功率 Gross power	安装尺寸 Installation size	重量 Weight	切膜宽度 Film cutting width
ZD-IN750	≤1200mm	450-650mm	780-1200mm	±1mm	30-40pcs/min	16-30pcs/min	40kw	11000X5500X2000	6700kg	≤650mm
